The CSW4 range combines all of the best features of the CSW3 with 'timber style' joints to the main frame and sashes, and a slim mid-rail. The inclusion of 18mm Krypton gas filled double glazed units allows deeper internal Georgian bars, which, combined with the timber joints and mid-rail, creates a truly authentic sash look.

Please take time to browse the gallery of images and detailed CSW4 product specification that appears below.

CSW4 - Gallery

'Timber style' joints to sashes and outer frame.

Top sash ring pull, centred.

Run-through horns in a traditional design.

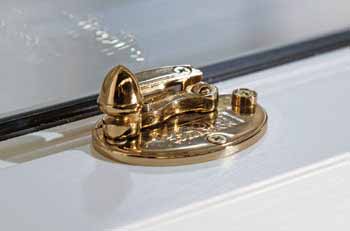

Bygone locking cam catch and keep.

Slim mid-rail shown with optional patterned glass.

Ironmongery options: black, satin, gold, brass, chrome and white.

CSW4 - Specification

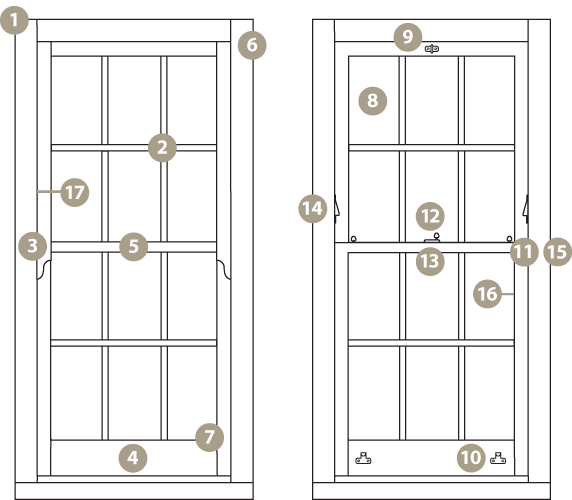

The numbered features on the line illustrations below are explained in the detailed specification that follows.

The Cambridge Sash Window CSW4 range includes:
1   White woodgrain upvc
2   Authentic Georgian bevelled/putty line bar outside, deep internal ovolo bar
3   Run-through horns (machined as part of the sash frame)
4   Extra deep bottom rail (of lower sash)
5   Mid-rail - slim
6   ‘Timber’ joints outer frame
7   ‘Timber’ joints sashes
8   A-Rated 18mm Krypton gas filled double glazed units
9   Top sash ring pull (one)
10   Lower sash lifts (two)
11   Tilt-in sash – both sashes
12   Bygone key locking cam catch and keep (one up to 800mm sash width, two over 800mm or dependent on Georgian bar design)
13   Window furniture choice: black, satin, gold, brass, chrome, white
14   Child restrictor limit stops – two (governs lower sash opening)
15   Acorn or beehive design tilt knobs
16   Black spacer bar (within glazed units)
17   Hidden brush pile draught excluder

•   Colour choice available
•   Toughened glass
•   Acoustic glass
•   Acoustic toughened glass
•   Other glass options available
•   White spacer bar (within glazed units)
•   Trickle vents
•   Marble Bygone key locking cam catch and keep

12 year guarantee
The CSW4 range is covered by our own Cambridge Sash Windows insurance backed DGCOS guarantee. The CSW4 range also benefits from an additional 2 year manufacturer's guarantee extension.

For more information contact our experienced sales team on 01799 520233
